Spring Batch - 16. SimpleJob 와 SimpleJobLauncher

출처

목차

SimpleJob

Step 을 실행시킬 수 있는 Job 의 구현체로서 SimpleJobBuilder 에 의해 생성된다.

하나 이상의 Step 으로 구성되며 순차적으로 Step 을 실행시킨다. 모든 Step 의 실행이 성공적으로 완료 돼야 Job 이 최종적으로 성공 상태가 된다.

SimpleJob 메소드

  • start
    • 최초로 한번 설정 한 후 SimpleJobBuilder 가 생성되고 반환된다.
  • next
    • 다음 실행할 step 들을 순차적으로 연결하도록 설정
  • validator
    • Job 실행에 필요한 Parameter 를 검증
    • DefaultJobParametersValidator 구현체를 지원하며 JobParametersValidator 인터페이스를 직접 구현할 수 있다.
  • preventRestart
    • Job 의 재실행을 방지 하는 설정
  • incrementer
    • JobParameter 에서 필요한 값을 증가 시켜 다음에 사용할 JobParameter 오브젝트를 리턴
    • RunIdIncrementer 구현체를 지원하며 JobParametersIncrementer 인터페이스를 직접 구현할 수 있다.

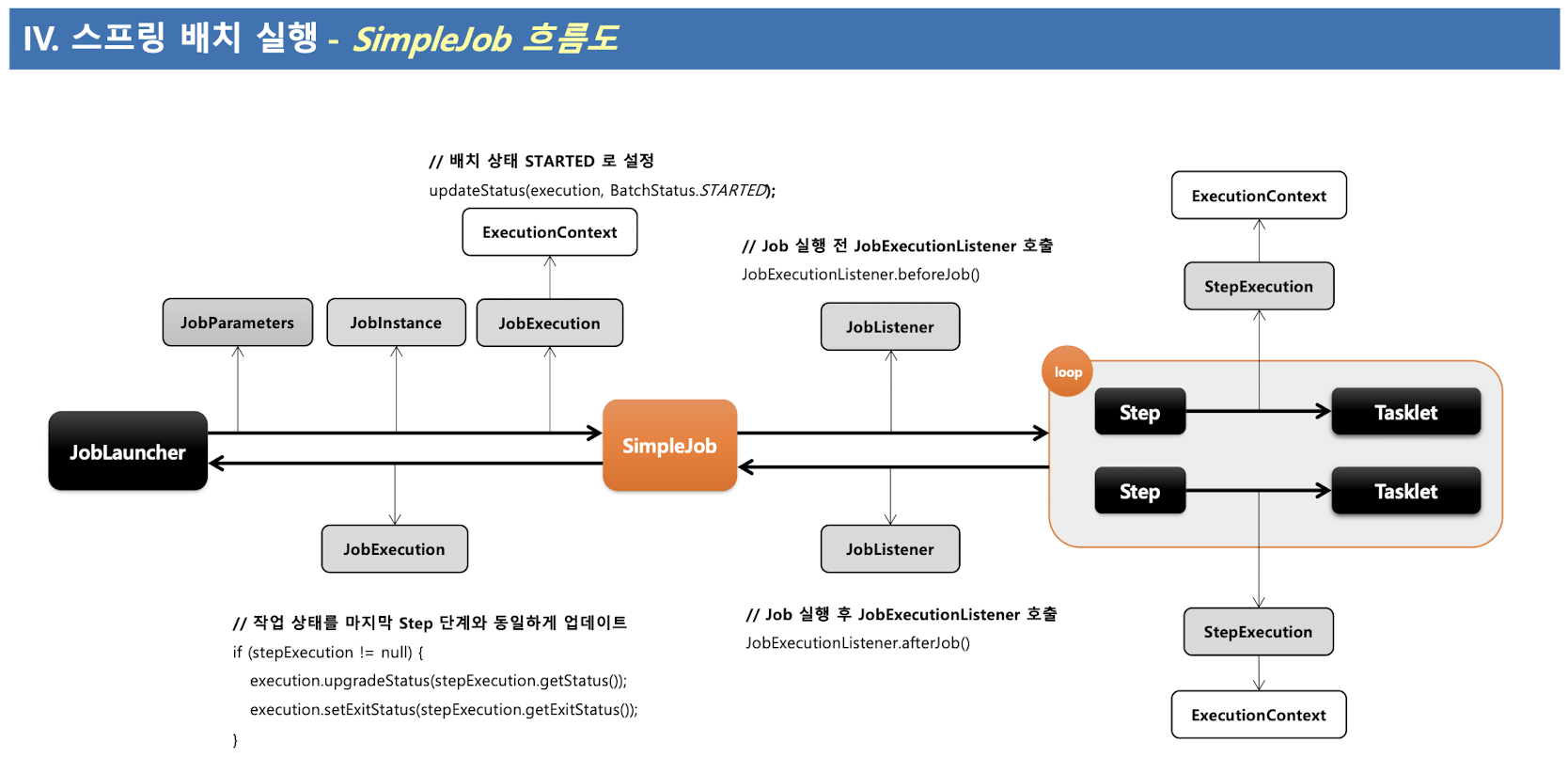

SimpleJob 흐름도

public class SimpleJob extends AbstractJob {

    private List<Step> steps = new ArrayList<>();

    public SimpleJob() {
        this(null);
    }

    public SimpleJob(String name) {
        super(name);
    }

    public void setSteps(List<Step> steps) {
        this.steps.clear();
        this.steps.addAll(steps);
    }

    @Override
    public Collection<String> getStepNames() {
        List<String> names = new ArrayList<>();
        for (Step step : steps) {
            names.add(step.getName());

            if(step instanceof StepLocator) {
                names.addAll(((StepLocator)step).getStepNames());
            }
        }
        return names;
    }

    public void addStep(Step step) {
        this.steps.add(step);
    }

    @Override
    public Step getStep(String stepName) {
        for (Step step : this.steps) {
            if (step.getName().equals(stepName)) {
                return step;
            } else if(step instanceof StepLocator) {
                Step result = ((StepLocator)step).getStep(stepName);
                if(result != null) {
                    return result;
                }
            }
        }
        return null;
    }

    @Override
    protected void doExecute(JobExecution execution) throws JobInterruptedException, JobRestartException,
    StartLimitExceededException {

        StepExecution stepExecution = null;
        for (Step step : steps) {
            stepExecution = handleStep(step, execution);
            if (stepExecution.getStatus() != BatchStatus.COMPLETED) {
                //
                // Terminate the job if a step fails
                //
                break;
            }
        }

        if (stepExecution != null) {
            if (logger.isDebugEnabled()) {
                logger.debug("Upgrading JobExecution status: " + stepExecution);
            }
            execution.upgradeStatus(stepExecution.getStatus());
            execution.setExitStatus(stepExecution.getExitStatus());
        }
    }

}

SimpleJobLauncher

SimpleJobLauncher 는 JobLauncher 인터페이스의 구현체로 SimpleJob 을 실행합니다.

public class SimpleJobLauncher implements JobLauncher, InitializingBean {

    protected static final Log logger = LogFactory.getLog(SimpleJobLauncher.class);

    private JobRepository jobRepository;

    private TaskExecutor taskExecutor;

    @Override
    public JobExecution run(final Job job, final JobParameters jobParameters)
            throws JobExecutionAlreadyRunningException, JobRestartException, JobInstanceAlreadyCompleteException,
            JobParametersInvalidException {

        Assert.notNull(job, "The Job must not be null.");
        Assert.notNull(jobParameters, "The JobParameters must not be null.");

        final JobExecution jobExecution;

        // 마지막으로 실행된 JobExecution 객체가 있는지 확인한다.
        JobExecution lastExecution = jobRepository.getLastJobExecution(job.getName(), jobParameters);
        if (lastExecution != null) {

            // Job Restart 설정을 확인한다.
            if (!job.isRestartable()) {
                throw new JobRestartException("JobInstance already exists and is not restartable");
            }

            for (StepExecution execution : lastExecution.getStepExecutions()) {
                BatchStatus status = execution.getStatus();
                if (status.isRunning() || status == BatchStatus.STOPPING) {
                    throw new JobExecutionAlreadyRunningException("A job execution for this job is already running: "
                            + lastExecution);
                } else if (status == BatchStatus.UNKNOWN) {
                    throw new JobRestartException(
                            "Cannot restart step [" + execution.getStepName() + "] from UNKNOWN status. "
                                + "The last execution ended with a failure that could not be rolled back, "
                                + "so it may be dangerous to proceed. Manual intervention is probably necessary.");
                }
            }
        }

        // JobParamter 에 대한 검증을 진행한다.
        job.getJobParametersValidator().validate(jobParameters);

        jobExecution = jobRepository.createJobExecution(job.getName(), jobParameters);

        try {
            taskExecutor.execute(new Runnable() {

                @Override
                public void run() {
                    try {
                        if (logger.isInfoEnabled()) {
                            logger.info("Job: [" + job + "] launched with the following parameters: [" + jobParameters
                                    + "]");
                        }
                        job.execute(jobExecution);
                        if (logger.isInfoEnabled()) {
                            Duration jobExecutionDuration = BatchMetrics.calculateDuration(jobExecution.getStartTime(), jobExecution.getEndTime());
                            logger.info("Job: [" + job + "] completed with the following parameters: [" + jobParameters
                                    + "] and the following status: [" + jobExecution.getStatus() + "]"
                                    + (jobExecutionDuration == null ? "" : " in " + BatchMetrics.formatDuration(jobExecutionDuration)));
                        }
                    }
                    catch (Throwable t) {
                        if (logger.isInfoEnabled()) {
                            logger.info("Job: [" + job
                                    + "] failed unexpectedly and fatally with the following parameters: [" + jobParameters
                                    + "]", t);
                        }
                        rethrow(t);
                    }
                }

                private void rethrow(Throwable t) {
                    if (t instanceof RuntimeException) {
                        throw (RuntimeException) t;
                    }
                    else if (t instanceof Error) {
                        throw (Error) t;
                    }
                    throw new IllegalStateException(t);
                }
            });
        }
        catch (TaskRejectedException e) {
            jobExecution.upgradeStatus(BatchStatus.FAILED);
            if (jobExecution.getExitStatus().equals(ExitStatus.UNKNOWN)) {
                jobExecution.setExitStatus(ExitStatus.FAILED.addExitDescription(e));
            }
            jobRepository.update(jobExecution);
        }

        return jobExecution;
    }

    public void setJobRepository(JobRepository jobRepository) {
        this.jobRepository = jobRepository;
    }

    public void setTaskExecutor(TaskExecutor taskExecutor) {
        this.taskExecutor = taskExecutor;
    }

    @Override
    public void afterPropertiesSet() throws Exception {
        Assert.state(jobRepository != null, "A JobRepository has not been set.");
        if (taskExecutor == null) {
            logger.info("No TaskExecutor has been set, defaulting to synchronous executor.");
            taskExecutor = new SyncTaskExecutor();
        }
    }
}
